Kyprianos Biris Posted November 7, 2014 at 09:44 PM Posted November 7, 2014 at 09:44 PM I was reading this is Skybrary to find out what is MSAW : http://www.skybrary.aero/index.php/Minimum_Safe_Altitude_Warning_%28MSAW%29 How does Euroscope's MSAW actually work ? Does it have a terrain database ? Hellenic vACC | Olympic Air Virtual Europe Region Director 2001-2011 Pilot: P5 | ATC: C3 Link to comment Share on other sites More sharing options...
Panagiotis Konstantinidis Posted November 8, 2014 at 11:44 AM Posted November 8, 2014 at 11:44 AM Kyprianos, the MSAW in euroscope are defined polygons with an [Mod - Happy Thoughts]igned altitude. From Euroscope's Wiki: This subsection defines the areas and their minimum safe altitudes for the MSAW (Minimum Safe Altitude Warning) system. When an aircraft is within one of the areas and below its minimum safe altitude, a yellow text "MSAW" is displayed in its tag above the callsign. Source I guess, in airspaces with radar coverage where MVAs are defined, MVAs should get higher priority over MSA published in charts Panagiotis Konstantinidis ACCGR11, HvACC Deputy Director Airport Briefing | Air Traffic Overview | Euroscope Guide | Euroscope Sector Files Link to comment Share on other sites More sharing options...
Kyprianos Biris Posted November 8, 2014 at 12:29 PM Author Posted November 8, 2014 at 12:29 PM Thanks ... ahh I had not spotted that since I was looking for reference of MSAW in main Wiki and ... Panos now that I see what your team has put in our sector's ESE for MSAW data ... I really say wow Hellenic vACC | Olympic Air Virtual Europe Region Director 2001-2011 Pilot: P5 | ATC: C3 Link to comment Share on other sites More sharing options...
Panagiotis Konstantinidis Posted November 8, 2014 at 04:16 PM Posted November 8, 2014 at 04:16 PM Hehe, thanks Kyprianos Well, we may change the five radar vectored TMAs to MVAs instead in a future release, but MSAW is already taking about 1600 lines of code in the ese file. We have included all published MSA for the greek airports Panagiotis Konstantinidis ACCGR11, HvACC Deputy Director Airport Briefing | Air Traffic Overview | Euroscope Guide | Euroscope Sector Files Link to comment Share on other sites More sharing options...

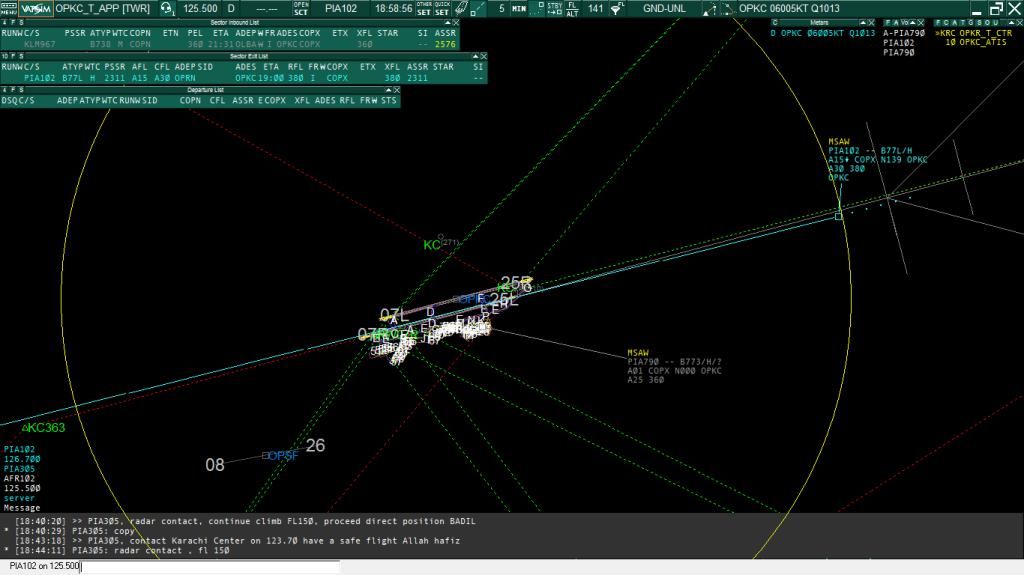

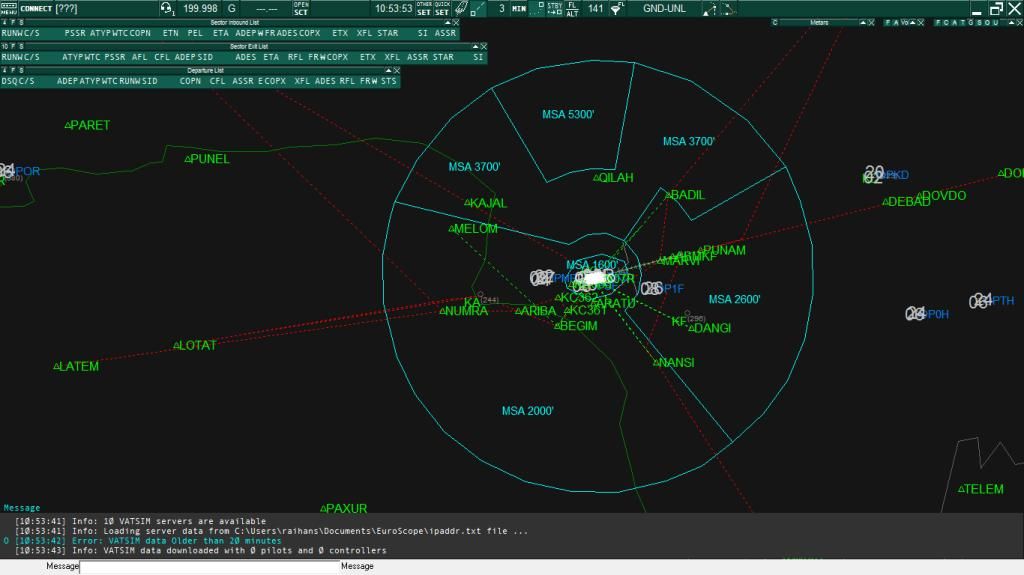

Raihan Shahzad 1208205 Posted January 31, 2015 at 10:41 AM Posted January 31, 2015 at 10:41 AM Hi, We have also implemented the MSAW feature for VATPAK sector, it is quite helpful for ATCO though code takes a lot time to script down. Raihan Shahzad Network Supervisor | Team3 VATWA1 - Division Director West Asia www.vatwa.net Link to comment Share on other sites More sharing options...
