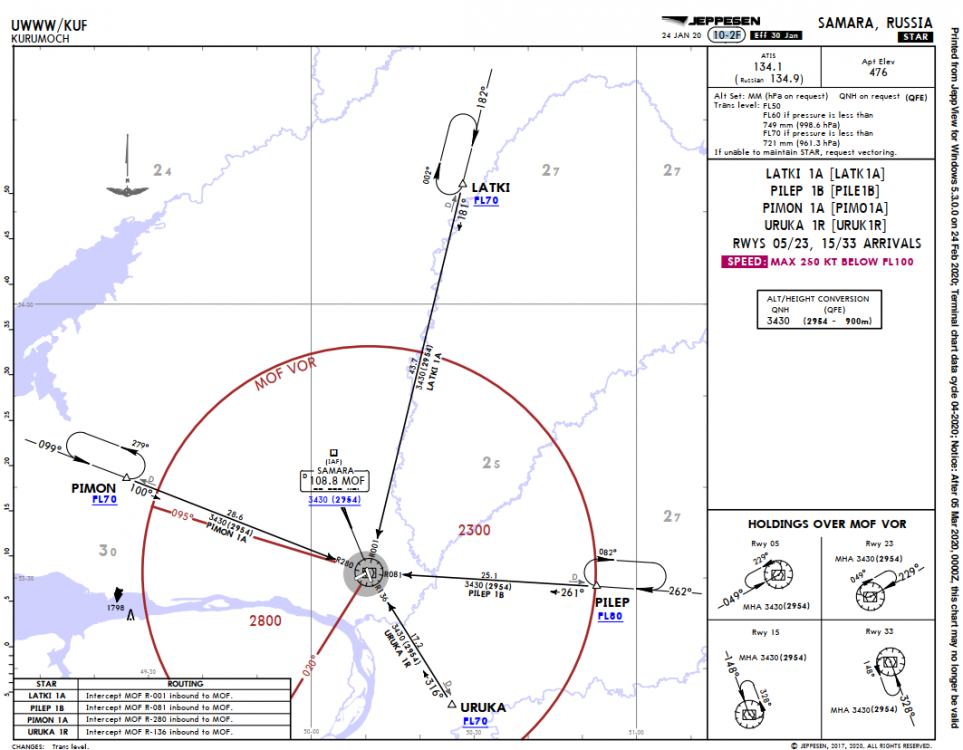

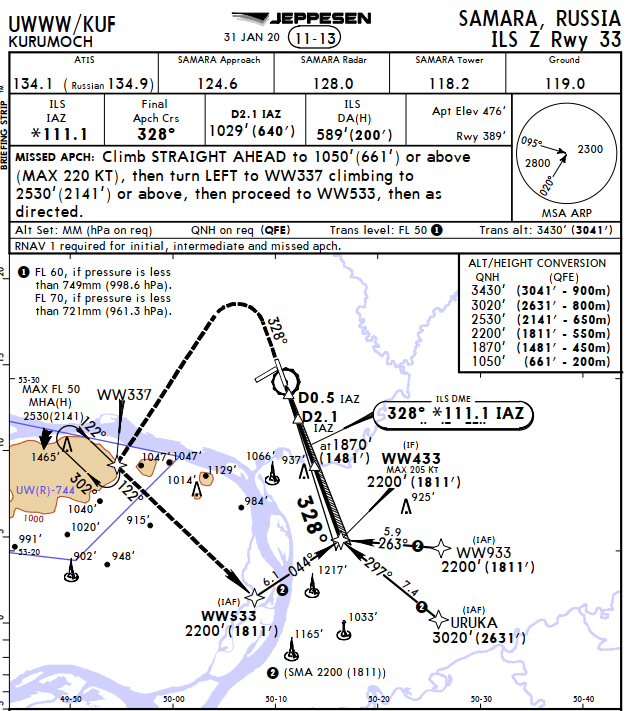

Evgeny Zavershinskiy Posted August 31, 2020 at 02:39 PM Posted August 31, 2020 at 02:39 PM Hi! Can anybody explain me STAR chart at the pic below? The STAR is leading you direct to the field. For example I want to practice the approach to runway 33 (second pic) from PIMON. Where I have to divert from a direct line that I see at the STAR to a WW533 as it is IAF that I want to use? Thank you. Link to comment Share on other sites More sharing options...
Lars Bergmann Posted August 31, 2020 at 02:46 PM Posted August 31, 2020 at 02:46 PM Just use the PIMON1Q arrival (not depicted on one of the charts you posted), which ends at WW533. If you want to use PIMON1A you'll have to go for the ILS X RWY 33 (not depicted here either) which has MOF as its IAF. 1 Link to comment Share on other sites More sharing options...
Evgeny Zavershinskiy Posted August 31, 2020 at 03:30 PM Author Posted August 31, 2020 at 03:30 PM Ah, I see. I have to connect the STAR with approach through the IAF. It's strange that in case of this particular charts this obvious thing did not came to mind! Thanx a lot! Link to comment Share on other sites More sharing options...
