[Preview] Vatsim Connect for Moodle

[Sarantos Tsialtas]

Hi guys,

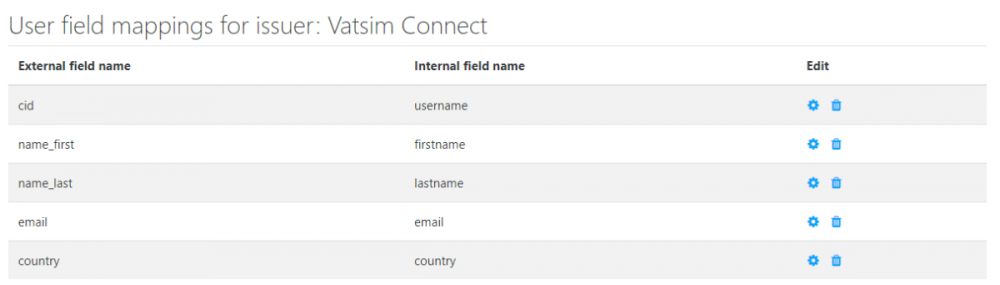

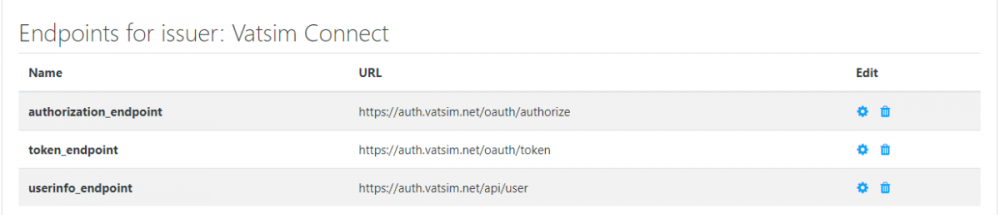

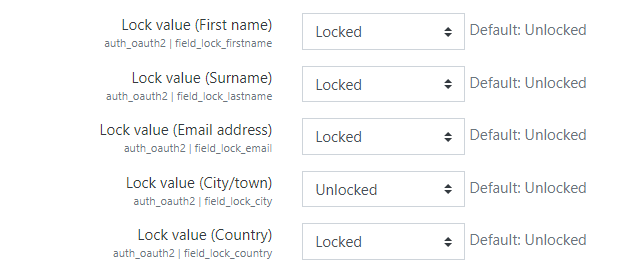

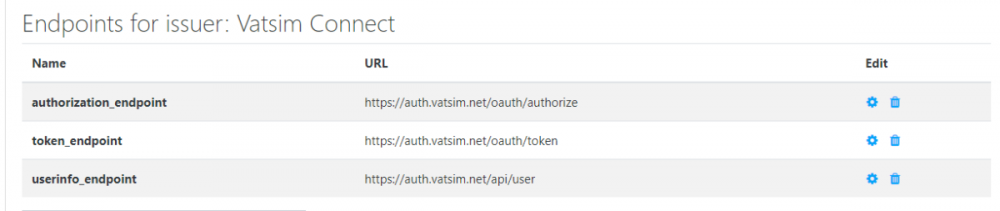

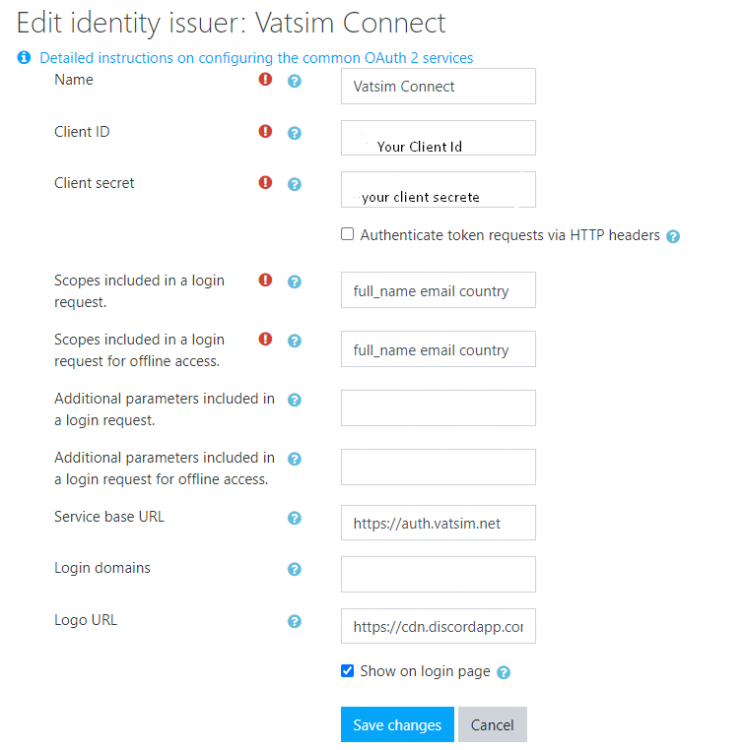

after a few days with the help from here this is my settings for moodle platform for OAuth2



if you want to disable e-mail confirmation uppor 1rst login with Vatsim Connect run the commad bellow in your database: (you have to run it every time you change your settings on Vatsim Connect)

UPDATE mdl_oauth2_issuer SET requireconfirmation = 0  WHERE id = 1;



• Set Callback url  https://your.domain.here/admin/oauth2callback.php

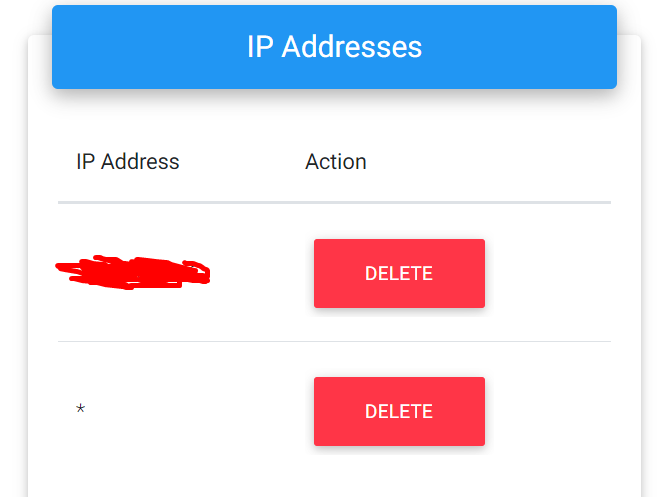

• Use an IP Wildcard (*)  at https://auth.vatsim.net



Edited December 19, 2020 at 10:01 PM by Sarantos Tsialtas
IP Wildcard and callback url

[Matt Bozwood-Davies]

Hi Sarantos

You should be able to use the built in, or any, OAuth2 module.

Matt

[Sarantos Tsialtas]

22 hours ago, Matt Bozwood-Davies said:

Hi Sarantos

You should be able to use the built in, or any, OAuth2 module.

Matt

i tried auth plugin and it worked.....

i tried aslo the built in one but i cant make it work...

[Nick Harasym]

When trying to use the auth plugin are any errors happening?

[Sarantos Tsialtas]

on Login Page i get

Quote

No user information was returned. The OAuth 2 service may be configured incorrectly.

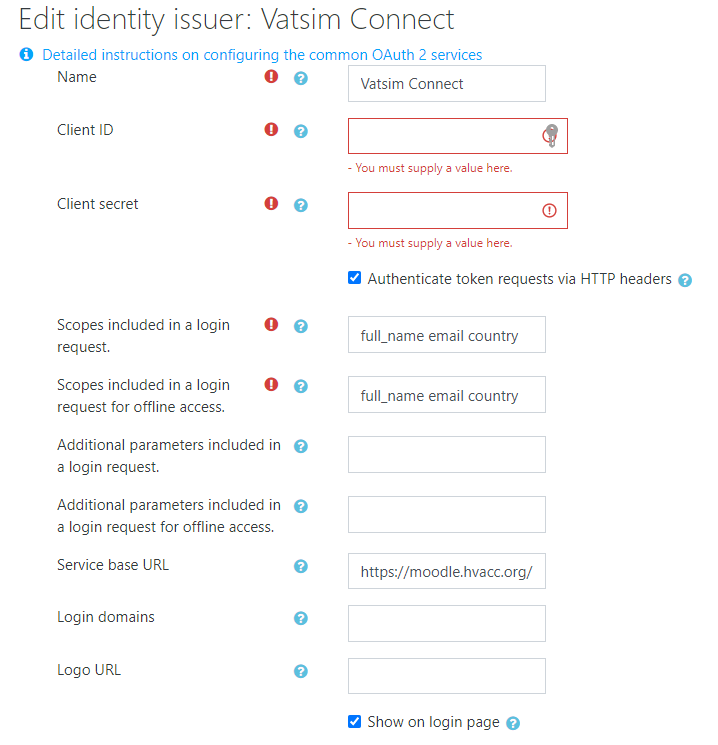

i use the settings bellow....

[Matt Bozwood-Davies]

From what I can tell. service base URL needs to be https://auth.vatsim.net not your domain.

It might be worth looking at nested properties for the field mappings. Not sure how to do it as VATSIM doesn't have our own moodle service. There are several divisions that do so might be able to elaborate if they have achieved it.



Matt



[Daniel Lange]

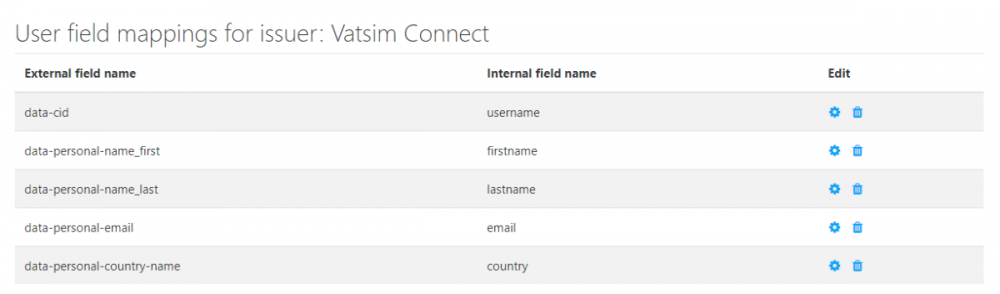

The Moodle documentation of OAuth2 user field mappings isn't great, I had to dig quite a while to figure this out for ourselves a while ago. Long story short, if the data is returned in a array that you need to nest, you use "-" to indicate this in the field mapping.

For instance "data-id" and "data-personal-name_first". This is probably your issue here, also as Matt said, service URL should be auth.vatsim.net.
You can find the data structure here: http://wiki.vatsim.net/connect.html under "Return Data Structure". I can't give you the exact copy of our settings as we've a quite different system for logging in.

[Sarantos Tsialtas]

18 hours ago, Daniel Lange said:

The Moodle documentation of OAuth2 user field mappings isn't great, I had to dig quite a while to figure this out for ourselves a while ago. Long story short, if the data is returned in a array that you need to nest, you use "-" to indicate this in the field mapping.

For instance "data-id" and "data-personal-name_first". This is probably your issue here, also as Matt said, service URL should be auth.vatsim.net.
You can find the data structure here: http://wiki.vatsim.net/connect.html under "Return Data Structure". I can't give you the exact copy of our settings as we've a quite different system for logging in.

thanks iu will try it and i will be back, also

Quote

},
      "oauth":{
         "token_valid":"true"
      }

must be stored on database?

[Daniel Lange]

2 hours ago, Sarantos Tsialtas said:

thanks iu will try it and i will be back, also

must be stored on database?

No need, only store what you need for Moodle to function, which is pretty much username, name and email.

[Sarantos Tsialtas]

1 hour ago, Daniel Lange said:

No need, only store what you need for Moodle to function, which is pretty much username, name and email.

thanks i made it work...  now looking how to disable e-mail confirmation after login

thanks for your time



Update: finally it worked... 1st post updated



Edited September 21, 2020 at 07:12 PM by Sarantos Tsialtas

[Sean Tan]

Hi Sarantos,

Thank you for your post regarding the VATSIM connect for Moodle.

These are my current configuration for my oauth: https://prnt.sc/w5uk5u, https://prnt.sc/w5ukfo, https://prnt.sc/w5ukks

However, I am seeing an error as stated: https://prnt.sc/w5uksp



Am I missing something ?

Thanks



Sean Tan

[Sarantos Tsialtas]

15 hours ago, Sean Tan said:

Hi Sarantos,

Thank you for your post regarding the VATSIM connect for Moodle.

These are my current configuration for my oauth: https://prnt.sc/w5uk5u, https://prnt.sc/w5ukfo, https://prnt.sc/w5ukks

However, I am seeing an error as stated: https://prnt.sc/w5uksp



Am I missing something ?

Thanks



Sean Tan



Did you used an IP Wildcard (*)  at https://auth.vatsim.net  ?

[Sean Tan]

I don't think I am using one.


[Sean Tan]

In such a case, would I need to add in an ip address from my main host for auth.vatsim.net in order to ensure that it is working ?

Second question: In regards to the oauth2callback.php, do u have the sample coding to be used if required or would the default script by moodle be suffice ?

Thanks for your help



Sean

Edited December 21, 2020 at 08:44 AM by Sean Tan

[Sarantos Tsialtas]

On 12/21/2020 at 9:38 AM, Sean Tan said:

In such a case, would I need to add in an ip address from my main host for auth.vatsim.net in order to ensure that it is working ?

Second question: In regards to the oauth2callback.php, do u have the sample coding to be used if required or would the default script by moodle be suffice ?

Thanks for your help



Sean



due to the scracture of our systems i am using my main IP adress from webserver and (*) for the rest....



the default script its ok



Merry Christmas
